State-Aware Decisions
The controller tracks transition history, not only current readings, which reduces unsafe ON/OFF relay switching.
Overview
System Snapshot
| Control Mode | AUTO + SAFETY |
|---|---|
| Telemetry | Realtime Stream |
| Decision Engine | Model Reflex Agent |
| Deployment | ESP32 + Python API |
HydroSmart DNA: What Makes This Unique
Dual Control Integrity
Manual override is available for operators, while autonomous safety constraints remain active in parallel.
Real Hardware Proof
Validated on ESP32 + relay + sensors as a complete sensing-to-actuation loop, not a simulation-only build.
- Sense
- Validate
- Decide
- Actuate
- Log
How it works
System Architecture
-
Hardware Sensing
ESP32 continuously reads water flow rate, temperature, current, and voltage from physical sensors.
-
Data Transmission
Data is securely transmitted to the Python backend through an API/websocket pipeline in real-time.
-
Intelligent Processing
The Model-Based Reflex Agent evaluates current thresholds and historical state transitions to determine the next optimal state.
-
Actuation
Backend sends precise control commands to the relay channel (ON/OFF/AUTO/SAFETY) to manage the motor.
-
Operator Visibility
The web dashboard receives live telemetry and action logs, providing operators with full situational awareness.
Screenshots & hardware
Visual Walkthrough

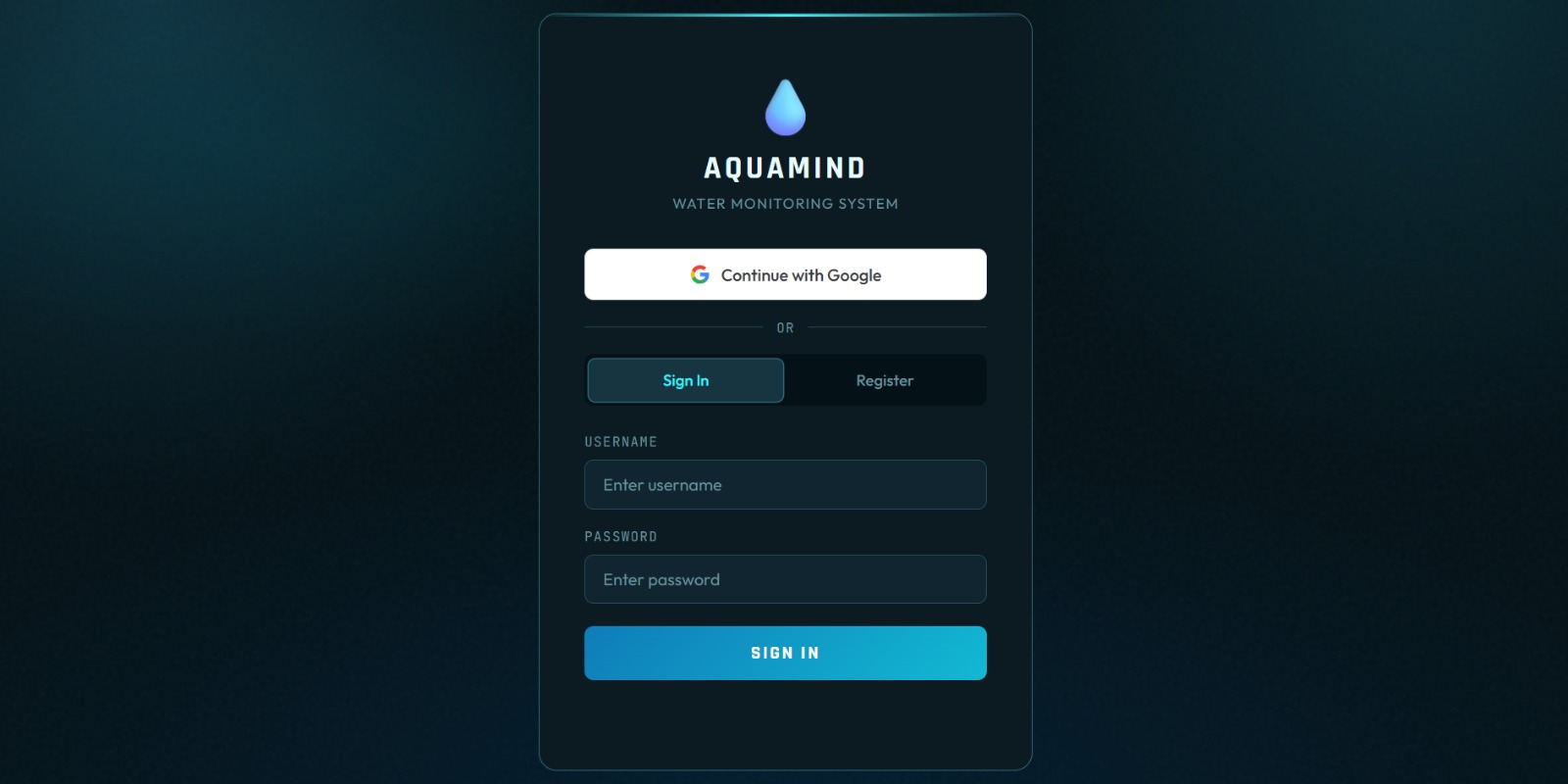

Authentication Screen
Secure entry portal with role-based access control. Ensures only authorized operators can access motor controls and live telemetry.

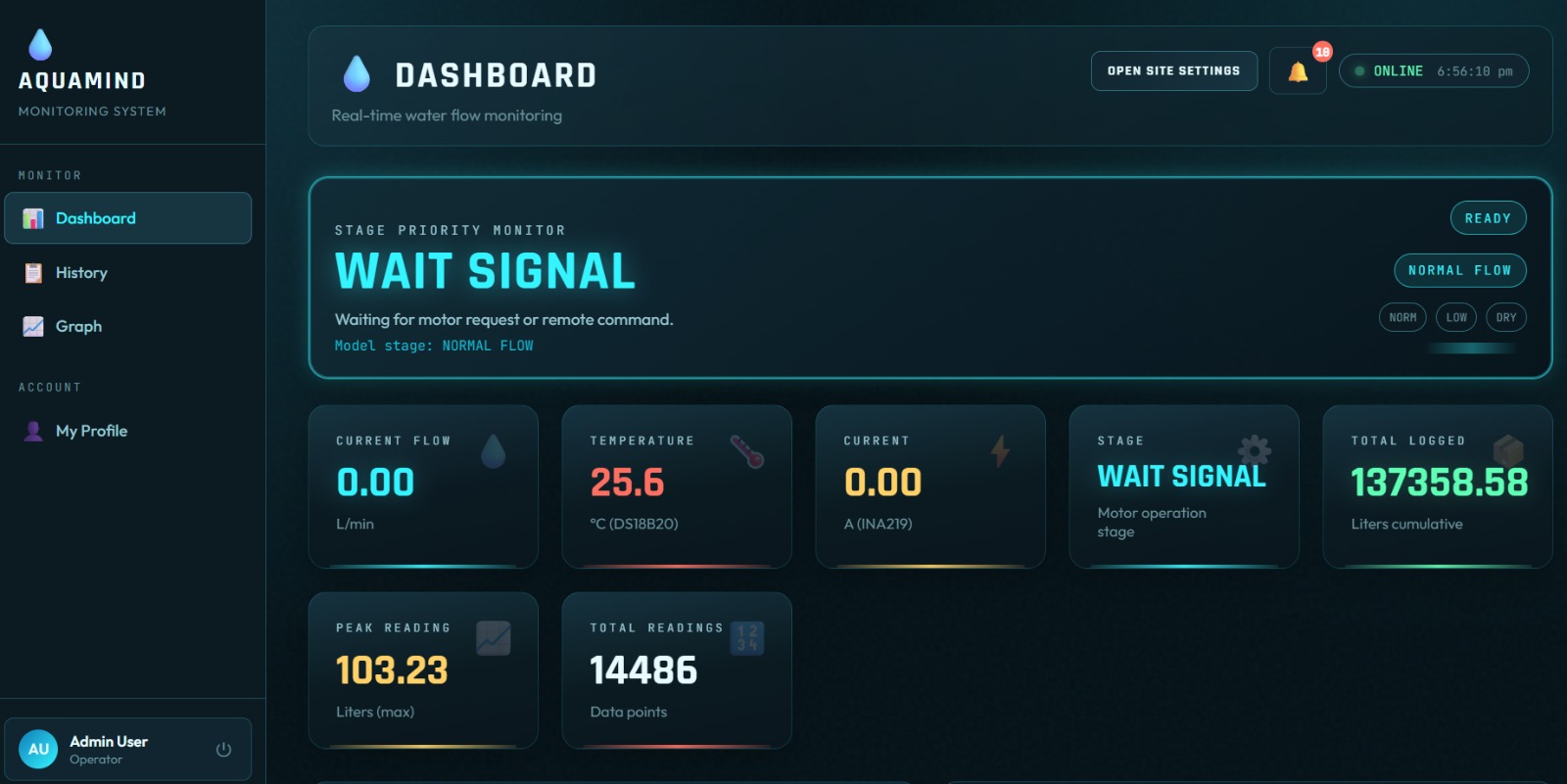

Live Operations Dashboard
Real-time situational awareness displaying stage state, flow, temperature, and motor current. Highlights staged motor logic states.

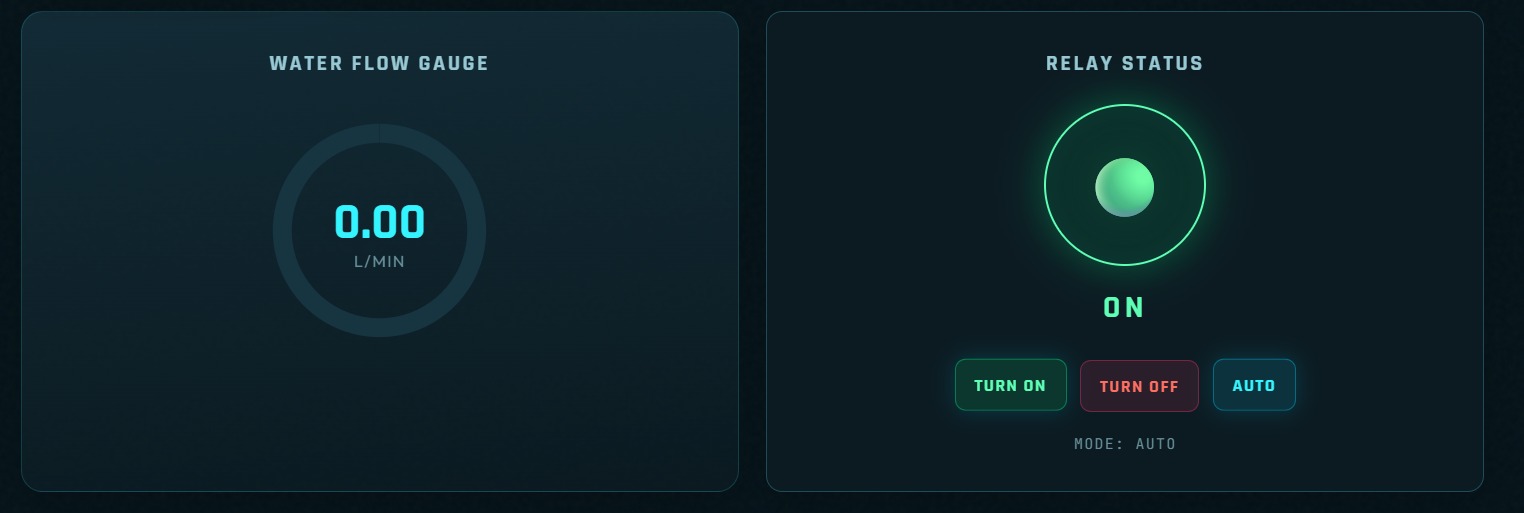

Gauge + Relay Control
Hybrid interface combining measured output with direct relay actions. Allows manual override while agent handles autonomous runtime.

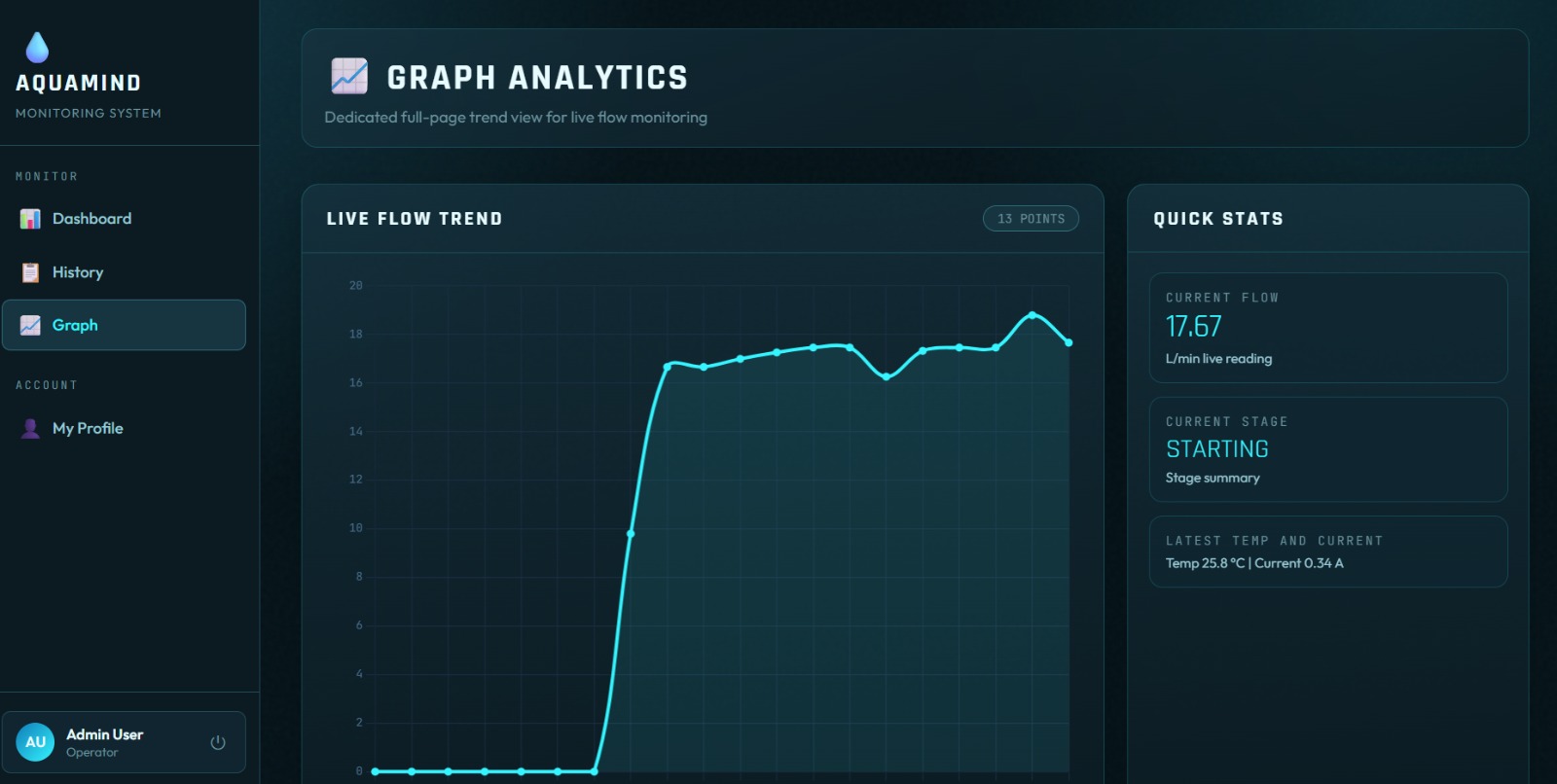

Flow Trend Analytics
Time-series visualization for post-run analysis, threshold tuning, and anomaly detection. Proves motor response and pipeline behavior.
Hardware Prototype Board
End-to-end integration proof featuring ESP32 controller, relay module, and sensor wiring. Validates physical to software connection.
Get the code
Resources & Access
Source Repository
Access the complete codebase including hardware configurations, Python backend, and dashboard UI.
View on GitHubSecure Download
Direct access to compiled source files. Requires authorization password.
Requirements
Hardware: ESP32, Relay Module, Sensors
Software: Python 3.8+, Node.js, Arduino IDE
